Product Description

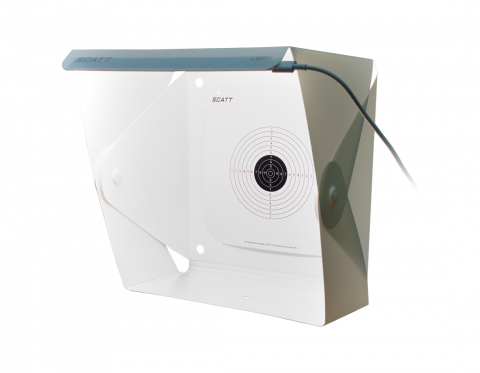

Foldable lighted target holder for MX-W2, MX-02, Basic
The LBF foldable target holder holds and illuminates paper targets for convenient training with SCATT systems. It is designed to provide a bright and flicker-free illumination on paper targets, which is particularly relevant for the Basic, MX-02, and MX-W2 models- Supports sheet sizes 100 х 100 mm and 170 х 170 mm.
- The holder has a foldable frame for convenient storage and transportation. The LBF target holder can be mounted on a wall or any standard photo tripod.
- Powered by a 5V power adapter. Alternatively, the holder could be powered with a portable power bank (not included in the kit).
How to practice at a reduced distance:
To practice at a distance lower than the original, the shooter must set a scaled paper target for the
print the actual distance. In this case, the angular size of the scaled target should be the size of the
target at the actual distance, i.e. the visually scaled target should be so
what it would look like at the original distance.
1. Original destination at the original distance
2 - 4th Scaled target in reduced distance
A scaled paper target can be printed directly from the SCATT software, with the distance to the target the distance
from the lens of the optical sensor to the place where the paper target is to be placed.
For a more convenient perception of the target from a short distance, we recommend that you set a paper target without the
valuation rings.
During the training at a short distance to the target, the parallax problem between the visor line of the weapon and the
axis of the optical sensor often to an actual problem. To compensate for the parallax, you can
a special Bracket with the possibility of changing the orientation angle. The most important point,
to which you should pay attention is that during the target to the target, the target point of the optical sensor in the middle
of the sensor calibration window of the SCATT software optical sensor.
- Gun race
- SCATT optical sensor
- Visor axis of the weapon
- Axis of the optical SCATT sensor
- Goal
- Mounting prism with parallax compensation option
The SCATT software calculates the angular fluctuations of the target point depending on the simulated distance
automatically new.
