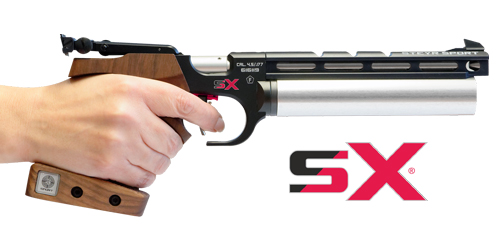

Product information: “EVO 10E SX”
The Steyr EVO 10E SX is the next evolution of Steyr’s flagship air pistols, integrating elite engineering with Smartrix® digital analysis for shooters who demand perfection. With its rechargeable electronic trigger, patented stabilizer, and ISSF-compliant design, the SX model delivers unmatched control and insight—making it the ultimate tool for serious competitors.
Key Features
- Electronic Ball-Bearing Trigger Infinitely adjustable with gold-contact activation—no microswitch, no switching travel. Trigger can be moved backward for smaller hands.
- Smartrix® Integration Advanced shot analysis via Bluetooth® (dongle removable for ISSF compliance):
- Trigger Pull Force & Dynamics
- Tilt Motion Tracking
- Tremor Analysis Your digital coach is always by your side.
- All existing LP 10 E and evo 10 E can be upgraded with this new system!
- The iOS software is currently not available
- Dry Fire Capability Train without cocking—ideal for conserving air and refining technique.
- Extended Battery Life At least 10,000 shots per full charge, with 300 shots still possible after the low battery indicator activates.
- Rotable Sight System Front and rear sights are rotatable and adjustable for depth and width, allowing precise alignment.
- Patented Tungsten Stabilizer Minimizes movement during shot release for absolute accuracy.
- Custom Fit Options Available in silver or black, with 11 redesigned grip styles to suit every shooter.
What’s Included
- 2 short compressed air cylinders (approx. 150 mm length, Ø 30.5 mm) with pressure gauge
- 4 × 10 g barrel weights
- Plastic pistol case
- Tools, spare O-rings, filling adapter
- Operator’s manual
Technical Specifications
| Attribute | Details |
|---|---|
| Action Type | Single-shot pistol for pellets |
| Propellant | Compressed air |
| Caliber | 4.5 mm (.177) |
| Dimensions (L×H×W) | 400 × 148 × 50 mm / 350 x 148 x 50 mm |
| Weight | 968 g |
| Sight Length | 316–365 mm / 266 – 315 mm |
| Front Sight | Moveable, rotable blade (4.5 mm) |
| Rear Sight | 2–6 mm width, 1–3 mm depth, rotable |
| Trigger Pull | 500 g |
| Trigger Settings | First stage length & weight, second stage weight |
| Trigger Blade | Adjustable in height, length, axial & radial |
